POWDERCOAT OPTIONS

STANDARD POWDERCOAT


	PEARL WHITE	SURFMIST	STONE BEIGE	DUNE	ULTRA SILVER	WOODLAND GREY	MONUMENT	CUSTOM BLACK

STANDARD SIZE ALUMINIUM WINDOWS

SUGGESTED STUD OPENING			670W	910W	1270W	1510W	1870W	2230W	2470W	2710W	3070W
	WITH REVEALS		650W	890W	1250W	1490W	1850W	2210W	2450W	2690W	3050W
		ALUMINIUM SIZE	610W	850W	1210W	1450W	1810W	2170W	2410W	2650W	3010W

660H	640H	600H
			0606	0609	0612	0615	0618	0622	0624	0627	0630
920H	900H	860H
			0906	0909	0912	0915	0918	0922	0924	0927	0930
1090H	1070H	1030H
			1006	1009	1012	1015	1018	1022	1024	1027	1030
1260H	1240H	1200H
			1206	1209	1212	1215	1218	1222	1224	1227	1230
1520H	1500H	1460H
			1506	1509	1512	1515	1518	1522	1524	1527	1530
1860H	1840H	1800H
			1806	1809	1812	1815	1818	1822	1824	1827	1830
2120H	2100H	2060H
			2106	2109	2112	2115	2118	2122	2124	2127	2130


GLAZING OPTIONS

SINGLE GLAZING AND DOUBLE GLAZING


	CLEAR CLEAR FLOAT CLEAR TOUGHENED CLEAR LAMINATE	GREY GREY FLOAT GREY TOUGHENED GREY LAMINATE	OBSCURE OBSCURE TOUGHENED	WHITE TRANSLUCENT WHITE TRANSLUCENT LAMINATE

TYPES OF ALUMINIUM WINDOWS

FIXED
52MM FRAME
100MM FRAME

SLIDING
52MM FRAME
67MM FRAME
100MM FRAME

AWNING
52MM FRAME
100MM FRAME

CASEMENT
52MM FRAME
100MM FRAME

VIEW BROCHURE

DOUBLE HUNG
52MM FRAME
100MM FRAME

LOUVRE
125MM FRAME

STACKING
100MM FRAME

BIFOLD

VIEW BROCHURE


NEED SOME HELP WORKING OUT YOUR ALUMINIUM WINDOW SIZE?

PLEASE ENTER YOUR MEASUREMENTS BELOW

		ALUMINIUM SIZE HEIGHT WITH REVEALS MM SUGGESTED STUD OPENING MM	ALUMINIUM SIZE WIDTH WITH REVEALS MM SUGGESTED STUD OPENING MM
	WE ALWAYS RECOMMEND DEDUCTING YOUR MEASUREMENTS BY 5 TO 10MM DUE TO MANUFACTURER'S TOLERANCE MANUFACTURER'S WINDOW MINIMUM AND MAXIMUM HEIGHT AND WIDTH APPLIES


NEED SOME HELP WORKING OUT YOUR ALUMINIUM WINDOW REVEAL SIZE?

SLIDING 52MM FRAME

		TOTAL WALL DEPTH REQUIRED REVEAL DEPTH MM

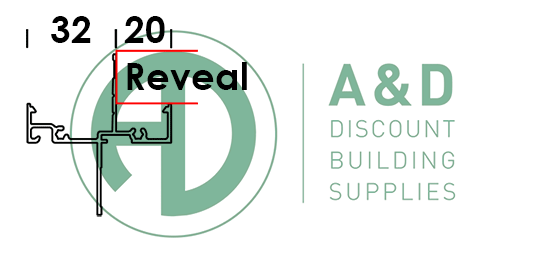

AWNING 52MM FRAME

		TOTAL WALL DEPTH REQUIRED REVEAL DEPTH MM

STANDARD SIZE ALUMINIUM SLIDING AND STACKING DOORS

SUGGESTED STUD OPENING

1510W

1870W

2230W

2470W

2770W

WITH REVEALS

1490W

1850W

2210W

2450W

2750W

ALUMINIUM SIZE

1450W

1810W

2170W

2410W

2710W

2130H

2120H

2100H

2115

2118

2122

2124

2127

2430H

2420H

2400H

2415

2418

2422

2424

2427

SUGGESTED STUD OPENING

2208W

2748W

3288W

3648W

4098W

WITH REVEALS

2188W

2728W

3268W

3628W

4078W

ALUMINIUM SIZE

2148W

2688W

3228W

3588W

4038W

2130H

2120H

2100H

2121

2127

2132

2136

2140

2430H

2420H

2400H

2421

2427

2432

2436

2440

SUGGESTED STUD OPENING

2208W

2748W

3288W

3648W

4098W

WITH REVEALS

2188W

2728W

3268W

3628W

4078W

ALUMINIUM SIZE

2148W

2688W

3228W

3588W

4038W

2130H

2120H

2100H

2121

2127

2132

2136

2140

2430H

2420H

2400H

2421

2427

2432

2436

2440

SUGGESTED STUD OPENING

2924W

3644W

4364W

4844W

5444W

WITH REVEALS

2904W

3624W

4344W

4824W

5424W

ALUMINIUM SIZE

2864W

3584W

4304W

4784W

5384W

2130H

2120H

2100H

2129

2136

2143

2148

2154

2430H

2420H

2400H

2429

2436

2443

2448

2454

SUGGESTED STUD OPENING			4326W	5406W	6306W
	WITH REVEALS		4306W	5386W	6286W
		ALUMINIUM SIZE	4266W	5346W	6246W

2130H	2120H	2100H
			2143	2153	2162
2430H	2420H	2400H
			2443	2453	2462

TYPES OF ALUMINIUM DOORS

SLIDING
80MM FRAME
100MM FRAME

STACKING
140MM FRAME
166MM FRAME

HINGED
100MM FRAME

BIFOLD
100MM FRAME

VIEW BROCHURE


NEED SOME HELP WORKING OUT YOUR ALUMINIUM DOOR SIZE?

PLEASE ENTER YOUR MEASUREMENTS BELOW

		ALUMINIUM SIZE HEIGHT WITH REVEALS MM SUGGESTED STUD OPENING MM	ALUMINIUM SIZE WIDTH WITH REVEALS MM SUGGESTED STUD OPENING MM
	WE ALWAYS RECOMMEND DEDUCTING YOUR MEASUREMENTS BY 5 TO 10MM DUE TO MANUFACTURER'S TOLERANCE MANUFACTURER'S DOOR MINIMUM AND MAXIMUM HEIGHT AND WIDTH APPLIES


NEED SOME HELP WORKING OUT YOUR ALUMINIUM DOOR REVEAL SIZE?

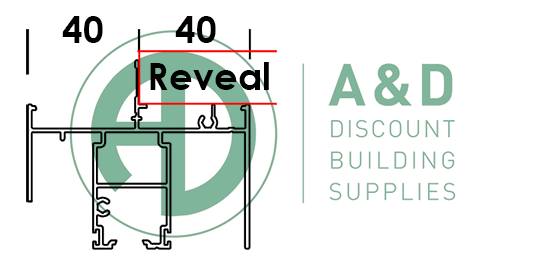

SLIDING 80MM FRAME

		TOTAL WALL DEPTH REQUIRED REVEAL DEPTH MM

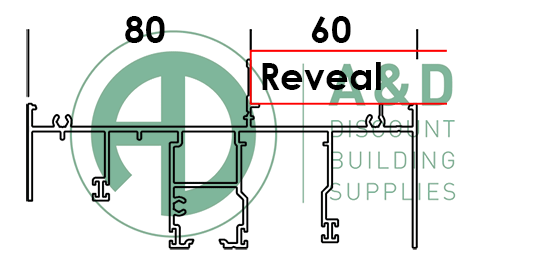

STACKING 140MM FRAME

		TOTAL WALL DEPTH REQUIRED REVEAL DEPTH MM


SLIDING 100MM FRAME

		TOTAL WALL DEPTH REQUIRED REVEAL DEPTH MM

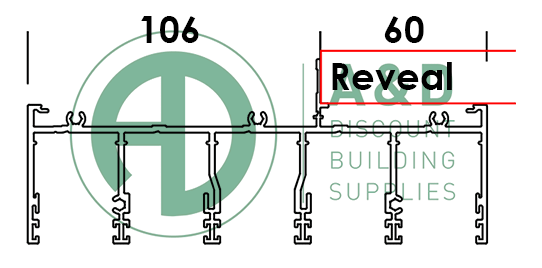

STACKING 166MM FRAME

		TOTAL WALL DEPTH REQUIRED REVEAL DEPTH MM
